Installation / Import

Installation von Edurel

!pip install edurel

Import von Edurel (ohne KI)

from edurel.core.er_schema_man import ERSchemaMan
from edurel.core.rel_schema_man import RelSchemaMan
from edurel.core.duckdb_man import DuckDbMan
from edurel.utils.md import display_sql, display_md, display_yaml
from edurel.utils.sql import transpile_postgres_sql, validate_postgres_sql

Import von Edurel (mit KI)

kommt noch

Entitätstyp

er_yaml = """
entities:
- entityname: Lehrperson
  key: LPID
  attributes:
  - attributename: Name
    type: VARCHAR(100)
  - attributename: EMail
    type: VARCHAR(100)
    nullable: True
"""
erman = ERSchemaMan.fromStr(er_yaml)
erman.display_mermaid_diagram(direction="LR", height="200px")
relman = RelSchemaMan.fromAST(erman.get_rel())
relman.display_mermaid_diagram(direction="LR", height="300px")
display_sql(relman.get_sql())

CREATE TABLE Lehrperson (
  LPID INTEGER NOT NULL,
  Name VARCHAR(100) NOT NULL,
  EMail VARCHAR(100),
  PRIMARY KEY (LPID)
);

Beziehungstyp

er_yaml = """
entities:
- entityname: Lehrperson
  key: LPID
  attributes:
  - attributename: Name
    type: VARCHAR(100)
  - attributename: EMail
    type: VARCHAR(100)
    nullable: True

- entityname: Gebaeude
  key: GID
  attributes:
  - attributename: Bez
    type: VARCHAR(50)

relationships:
- relationshipname: hat_buero_in
  entities:
  - targetentity: Lehrperson
    cardinality: OPTIONAL_MANY
  - targetentity: Gebaeude
    cardinality: OPTIONAL_ONE
"""

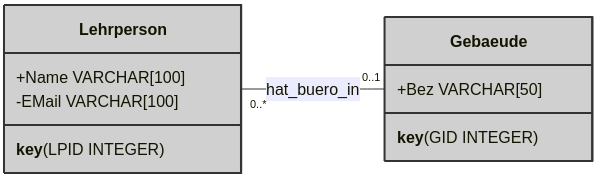

erman = ERSchemaMan.fromStr(er_yaml)
erman.display_mermaid_diagram(direction="LR", height="200px")

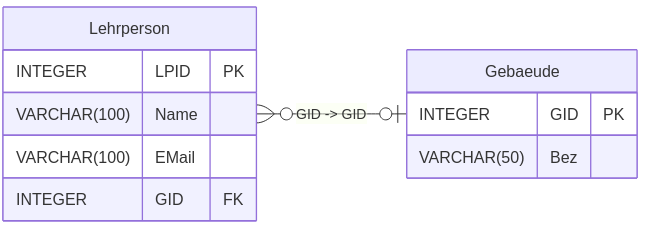

relman = RelSchemaMan.fromAST(erman.get_rel())
relman.display_mermaid_diagram(direction="LR", height="300px")
display_sql(relman.get_sql())

CREATE TABLE Lehrperson (
  LPID INTEGER NOT NULL,
  Name VARCHAR(100) NOT NULL,
  EMail VARCHAR(100),
  GID INTEGER,
  PRIMARY KEY (LPID)
);
CREATE TABLE Gebaeude (
  GID INTEGER NOT NULL,
  Bez VARCHAR(50) NOT NULL,
  PRIMARY KEY (GID)
);
ALTER TABLE Lehrperson
  ADD CONSTRAINT fk_hat_buero_in FOREIGN KEY (GID) REFERENCES Gebaeude (GID);

Werteliste

er_yaml = """
entities:
- entityname: Modul
  key: MID
  attributes:
  - attributename: Bez
    type: VARCHAR(50)
valuelists:
- valuelistname: Modulart
  values:
  - Pflicht
  - Wahlpflicht
  - Wahl
  many_to_one_from_entities:
  - sourceentity: Modul
"""

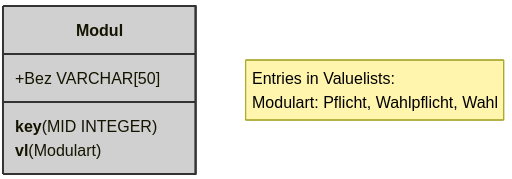

erman = ERSchemaMan.fromStr(er_yaml)
erman.display_mermaid_diagram(direction="TB", height="200px")

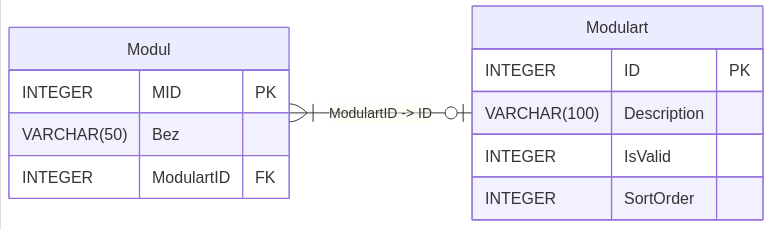

relman = RelSchemaMan.fromAST(erman.get_rel())
relman.display_mermaid_diagram(direction="LR", height="300px")
display_sql(relman.get_sql())

CREATE TABLE Modul (
  MID INTEGER NOT NULL,
  Bez VARCHAR(50) NOT NULL,
  ModulartID INTEGER NOT NULL,
  PRIMARY KEY (MID)
);
CREATE TABLE Modulart (
  ID INTEGER NOT NULL,
  Description VARCHAR(100) NOT NULL,
  IsValid INTEGER NOT NULL,
  SortOrder INTEGER NOT NULL,
  PRIMARY KEY (ID)
);
ALTER TABLE Modul
  ADD CONSTRAINT fk_Modul_Modulart FOREIGN KEY (ModulartID) REFERENCES Modulart (ID);
INSERT INTO Modulart (ID, Description, IsValid, SortOrder) VALUES (1, 'Pflicht', 1, 1);
INSERT INTO Modulart (ID, Description, IsValid, SortOrder) VALUES (2, 'Wahlpflicht', 1, 2);
INSERT INTO Modulart (ID, Description, IsValid, SortOrder) VALUES (3, 'Wahl', 1, 3);

Assoziationstypen

er_yaml = """
entities:
- entityname: Kunde
  key: KID
  attributes:
  - attributename: Name
    type: VARCHAR(100)

- entityname: Kundenkategorie
  key: KKID
  attributes:
  - attributename: Bez
    type: VARCHAR(30)
  - attributename: BeginGueltig
    type: DATE
  - attributename: EndeGueltig
    type: DATE

- entityname: Lieferant
  key: LID
  attributes:
  - attributename: Name
    type: VARCHAR(100)

- entityname: Artikel
  key: AID
  attributes:
  - attributename: Bez
    type: VARCHAR(200)


associative_entities:
- associationname: Bestellung
  identification:
    localkey: BID
    keytype: INTEGER
  associations:
    - targetentity: Kunde
      cardinality: OPTIONAL_ONE
  attributes:
  - attributename: BestellDatum
    type: DATE

- associationname: Bestellposition
  identification:
    localkey: LfdNr
    keytype: INTEGER
    global:
    - targetentity: Bestellung
  associations:
    - targetentity: Artikel
      cardinality: OPTIONAL_ONE
  attributes:
  - attributename: Menge
    type: INTEGER

- associationname: Verkaufkondition
  identification:
    global:
    - targetentity: Kundenkategorie
      role: fuer_KK
    - targetentity: Artikel
      role: VK_Artikel
  attributes:
  - attributename: Preis
    type: DECIMAL(9,2)

- associationname: Einkaufskondition
  identification:
    global:
    - targetentity: Lieferant
      role: fuer_Lieferant
    - targetentity: Artikel
      role: EK_Artikel
  attributes:
  - attributename: DauerInTagen
    type: INTEGER
  - attributename: Preis
    type: DECIMAL(9,2)

relationships:
- relationshipname: hat_Kategorie
  entities:
  - targetentity: Kunde
    cardinality: MANY
  - targetentity: Kundenkategorie
    cardinality: OPTIONAL_ONE
"""

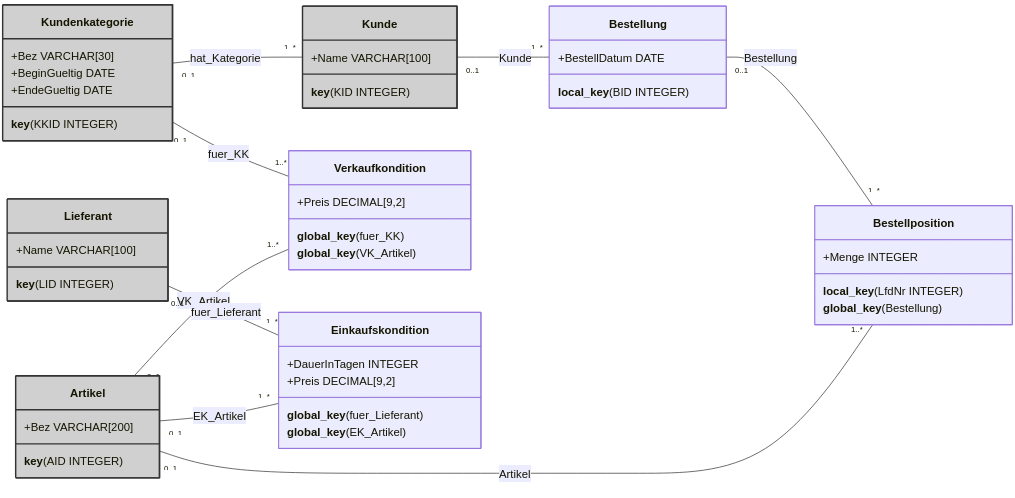

erman = ERSchemaMan.fromStr(er_yaml)
erman.display_mermaid_diagram(direction="RL", height="600px")

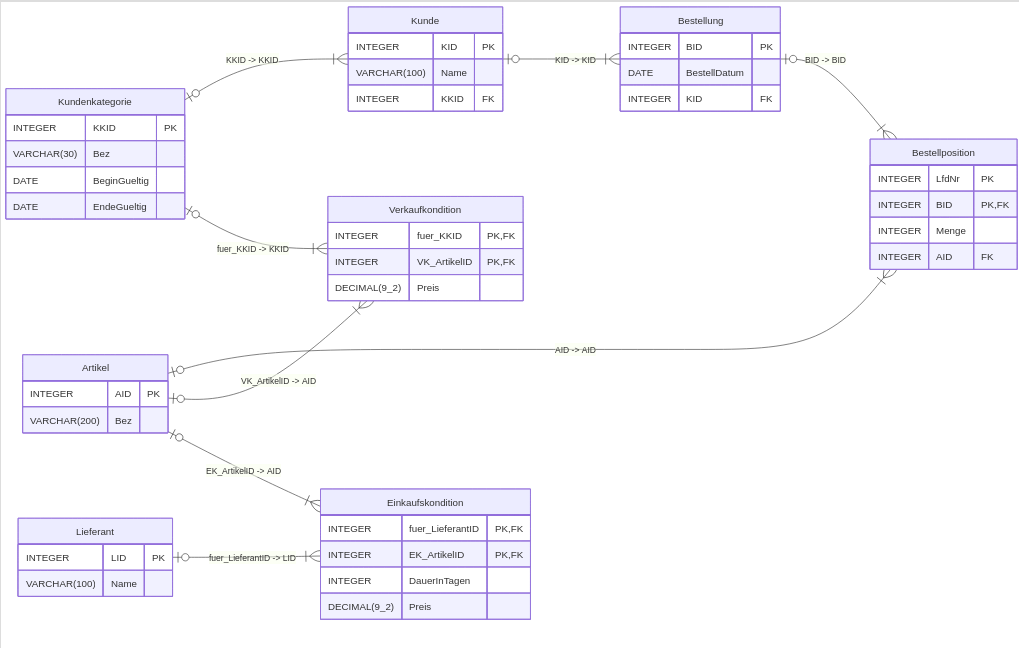

relman = RelSchemaMan.fromAST(erman.get_rel())
relman.display_mermaid_diagram(direction="RL", height="700px")
display_sql(relman.get_sql())

CCREATE TABLE Kunde (
  KID INTEGER NOT NULL,
  Name VARCHAR(100) NOT NULL,
  KKID INTEGER NOT NULL,
  PRIMARY KEY (KID)
);
CREATE TABLE Kundenkategorie (
  KKID INTEGER NOT NULL,
  Bez VARCHAR(30) NOT NULL,
  BeginGueltig DATE NOT NULL,
  EndeGueltig DATE NOT NULL,
  PRIMARY KEY (KKID)
);
CREATE TABLE Lieferant (
  LID INTEGER NOT NULL,
  Name VARCHAR(100) NOT NULL,
  PRIMARY KEY (LID)
);
CREATE TABLE Artikel (
  AID INTEGER NOT NULL,
  Bez VARCHAR(200) NOT NULL,
  PRIMARY KEY (AID)
);
CREATE TABLE Bestellung (
  BID INTEGER NOT NULL,
  BestellDatum DATE NOT NULL,
  KID INTEGER NOT NULL,
  PRIMARY KEY (BID)
);
CREATE TABLE Bestellposition (
  LfdNr INTEGER NOT NULL,
  BID INTEGER NOT NULL,
  Menge INTEGER NOT NULL,
  AID INTEGER NOT NULL,
  PRIMARY KEY (LfdNr, BID)
);
CREATE TABLE Verkaufkondition (
  fuer_KKID INTEGER NOT NULL,
  VK_ArtikelID INTEGER NOT NULL,
  Preis DECIMAL(9,2) NOT NULL,
  PRIMARY KEY (fuer_KKID, VK_ArtikelID)
);
CREATE TABLE Einkaufskondition (
  fuer_LieferantID INTEGER NOT NULL,
  EK_ArtikelID INTEGER NOT NULL,
  DauerInTagen INTEGER NOT NULL,
  Preis DECIMAL(9,2) NOT NULL,
  PRIMARY KEY (fuer_LieferantID, EK_ArtikelID)
);
ALTER TABLE Kunde
  ADD CONSTRAINT fk_hat_Kategorie FOREIGN KEY (KKID) REFERENCES Kundenkategorie (KKID);
ALTER TABLE Bestellung
  ADD CONSTRAINT fk_Bestellung_Kunde_assoc FOREIGN KEY (KID) REFERENCES Kunde (KID);
ALTER TABLE Bestellposition
  ADD CONSTRAINT fk_Bestellposition_Bestellung FOREIGN KEY (BID) REFERENCES Bestellung (BID);
ALTER TABLE Bestellposition
  ADD CONSTRAINT fk_Bestellposition_Artikel_assoc FOREIGN KEY (AID) REFERENCES Artikel (AID);
ALTER TABLE Verkaufkondition
  ADD CONSTRAINT fk_Verkaufkondition_fuer_KK FOREIGN KEY (fuer_KKID) REFERENCES Kundenkategorie (KKID);
ALTER TABLE Verkaufkondition
  ADD CONSTRAINT fk_Verkaufkondition_VK_Artikel FOREIGN KEY (VK_ArtikelID) REFERENCES Artikel (AID);
ALTER TABLE Einkaufskondition
  ADD CONSTRAINT fk_Einkaufskondition_fuer_Lieferant FOREIGN KEY (fuer_LieferantID) REFERENCES Lieferant (LID);
ALTER TABLE Einkaufskondition
  ADD CONSTRAINT fk_Einkaufskondition_EK_Artikel FOREIGN KEY (EK_ArtikelID) REFERENCES Artikel (AID);

Erzeugung von Oracle-Code

er_yaml = """
entities:
- entityname: Lehrperson
  key: LPID
  attributes:
  - attributename: Name
    type: VARCHAR(100)
  - attributename: EMail
    type: VARCHAR(100)
    nullable: True

- entityname: Gebaeude
  key: GID
  attributes:
  - attributename: Bez
    type: VARCHAR(50)

relationships:
- relationshipname: hat_buero_in
  entities:
  - targetentity: Lehrperson
    cardinality: OPTIONAL_MANY
  - targetentity: Gebaeude
    cardinality: OPTIONAL_ONE
"""
erman = ERSchemaMan.fromStr(er_yaml)
# erman.display_mermaid_diagram(direction="LR", height="200px")
relman = RelSchemaMan.fromAST(erman.get_rel())
# relman.display_mermaid_diagram(direction="LR", height="300px")
sql = relman.get_sql()
osql = transpile_postgres_sql(sql, target_dialect="oracle")
display_sql(osql)

CREATE TABLE Lehrperson (LPID NUMBER NOT NULL, Name VARCHAR2(100) NOT NULL, EMail VARCHAR2(100), GID NUMBER, PRIMARY KEY (LPID));
CREATE TABLE Gebaeude (GID NUMBER NOT NULL, Bez VARCHAR2(50) NOT NULL, PRIMARY KEY (GID));
ALTER TABLE Lehrperson ADD CONSTRAINT fk_hat_buero_in FOREIGN KEY (GID) REFERENCES Gebaeude (GID)

Erzeugung von DuckDB-Code

DuckDB unterstützt kein ALTER TABLE für Fremdschlüssel. Daher werden Fremdschlüssel in der CREATE TABLE-Anweisung definiert. Das erfolgt durch durch den Parameter fk_external=False bei der SQL-Code-Erzeugung

er_yaml = """
entities:
- entityname: Lehrperson
  key: LPID
  attributes:
  - attributename: Name
    type: VARCHAR(100)
  - attributename: EMail
    type: VARCHAR(100)
    nullable: True

- entityname: Gebaeude
  key: GID
  attributes:
  - attributename: Bez
    type: VARCHAR(50)

relationships:
- relationshipname: hat_buero_in
  entities:
  - targetentity: Lehrperson
    cardinality: OPTIONAL_MANY
  - targetentity: Gebaeude
    cardinality: OPTIONAL_ONE
"""
erman = ERSchemaMan.fromStr(er_yaml)
# erman.display_mermaid_diagram(direction="LR", height="200px")
relman = RelSchemaMan.fromAST(erman.get_rel())
# relman.display_mermaid_diagram(direction="LR", height="300px")
display_sql(relman.get_sql(fk_external=False))

 CREATE TABLE Gebaeude (
  GID INTEGER NOT NULL,
  Bez VARCHAR(50) NOT NULL,
  PRIMARY KEY (GID)
);
CREATE TABLE Lehrperson (
  LPID INTEGER NOT NULL,
  Name VARCHAR(100) NOT NULL,
  EMail VARCHAR(100),
  GID INTEGER,
  PRIMARY KEY (LPID),
  CONSTRAINT fk_hat_buero_in FOREIGN KEY (GID) REFERENCES Gebaeude (GID)
);
