Concept of Decision Trees

General idea of decision trees

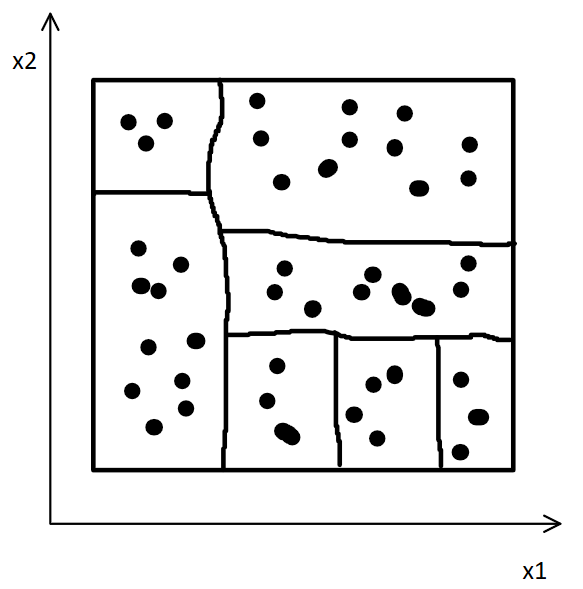

• Gready decomposition of feature space by recursive binary splitting
• Stop splitting according to criterion, e.g.
• minimal numbers of instances in region
• max depth of tree
• minimal performance gain

Finding splits

• Search through all features
• For each feature: consider all split values
• Take "best" (feature, splitval) combination

For each box

• Take mean, in case of regression
• Take majority class, in case of classification

California Housing

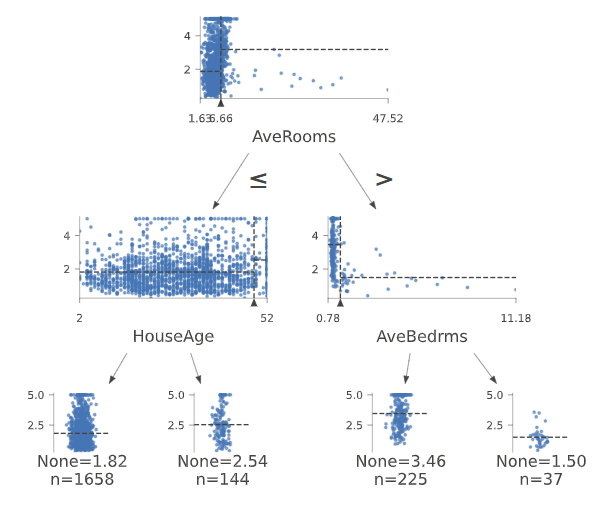

Decision Tree

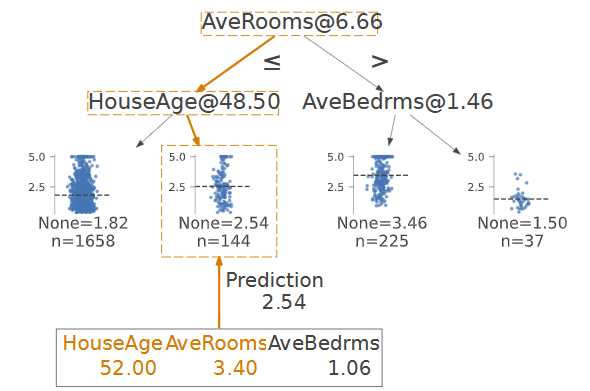

Prediction of an individual Instance

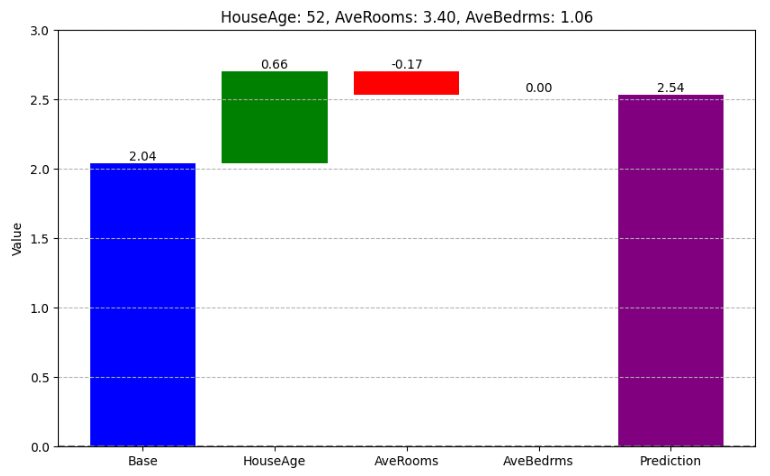

Contributions

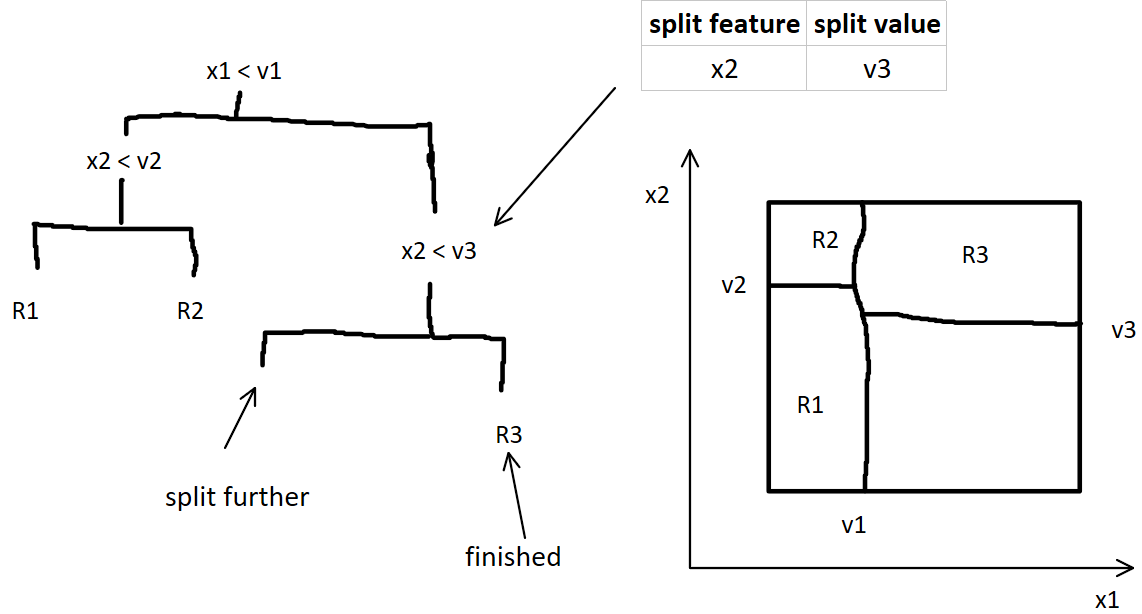

Recursive Binary Splitting

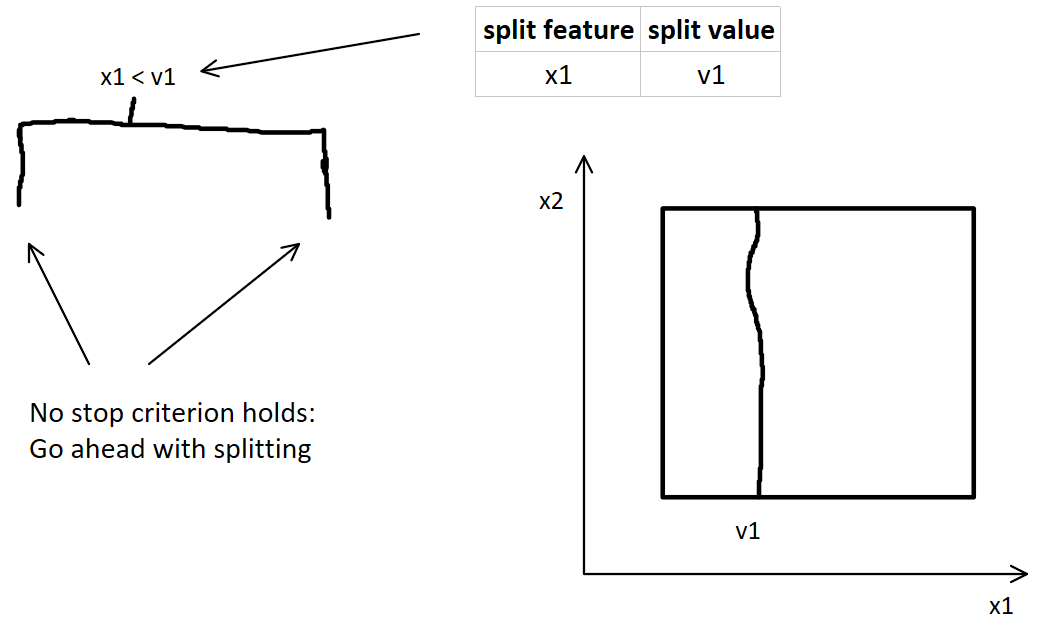

Split 1

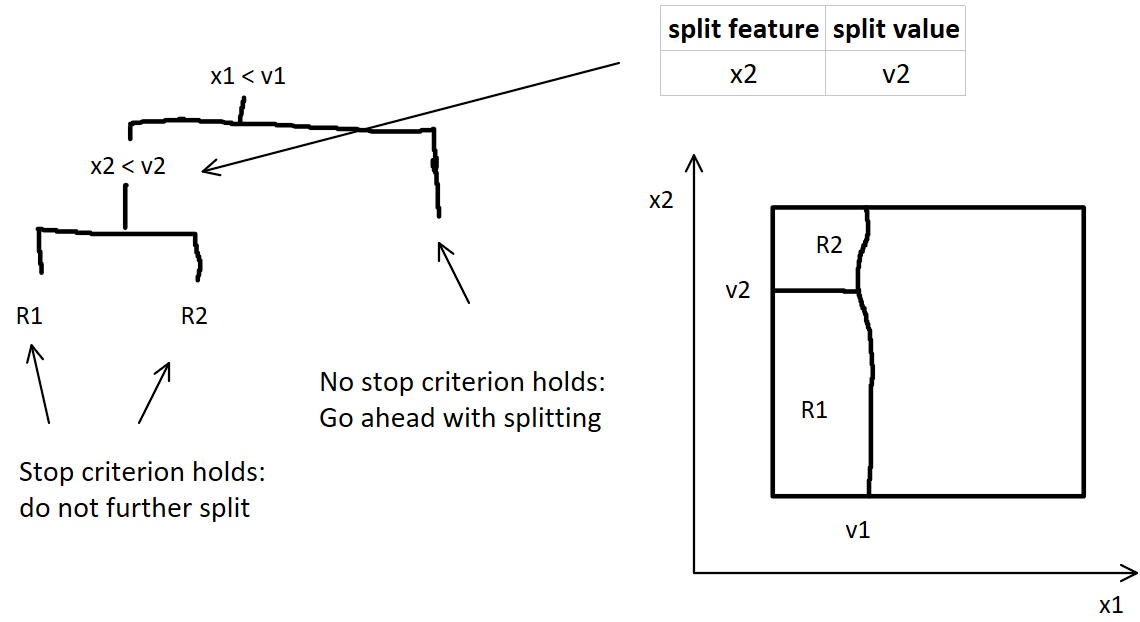

Split 2

Split 3

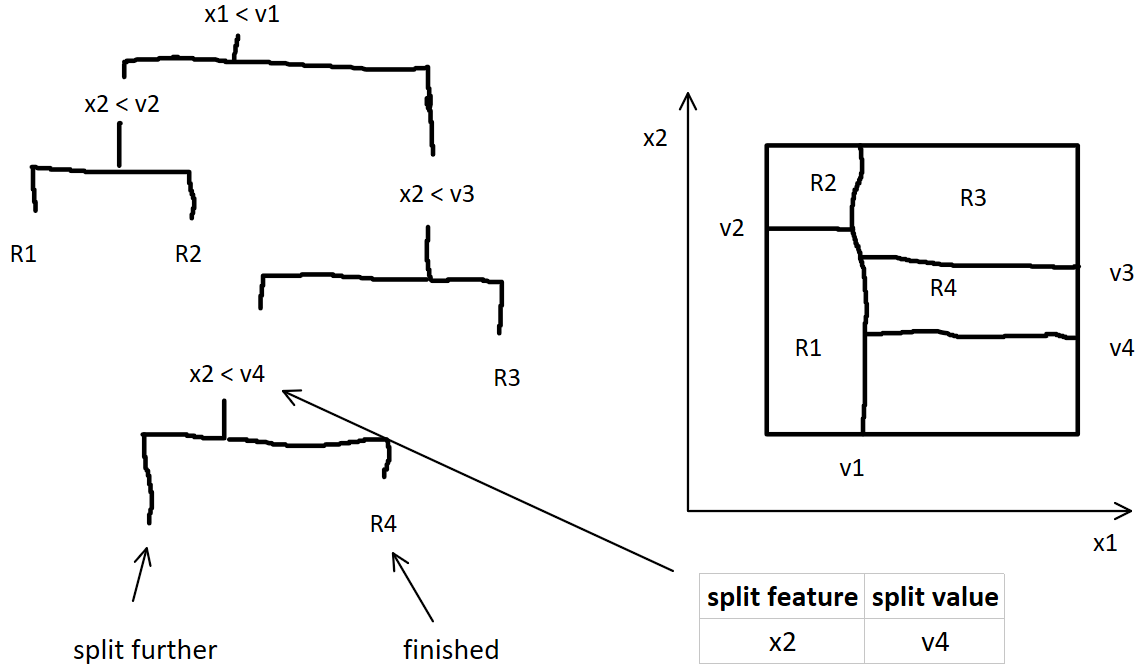

Split 4

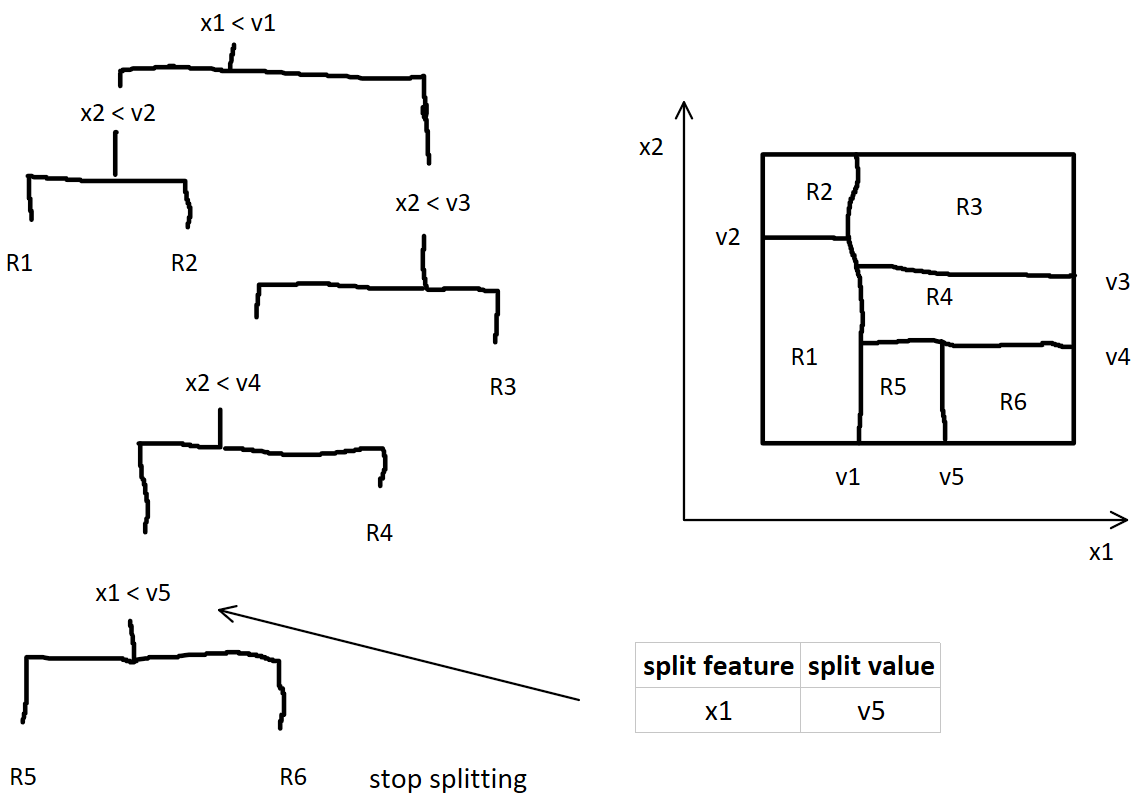

Split 5

MSE Value of Region

Mathematical Definition

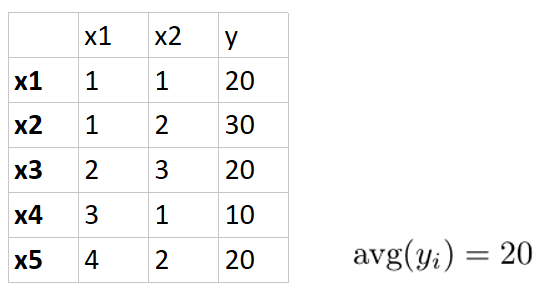

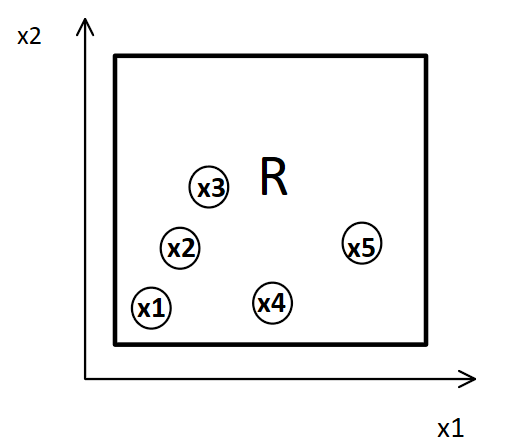

Data

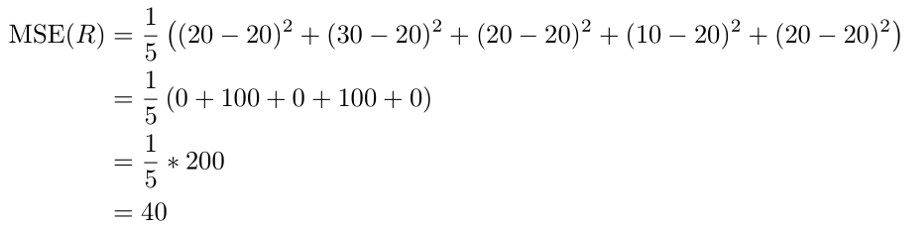

Calculation

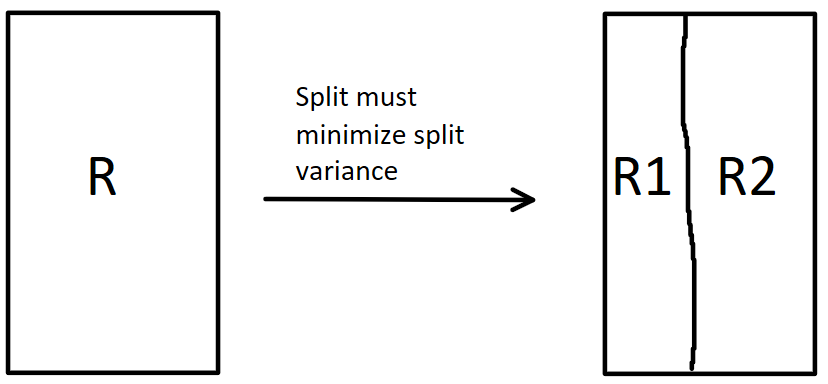

Split Criterion Regression

Iris Plants

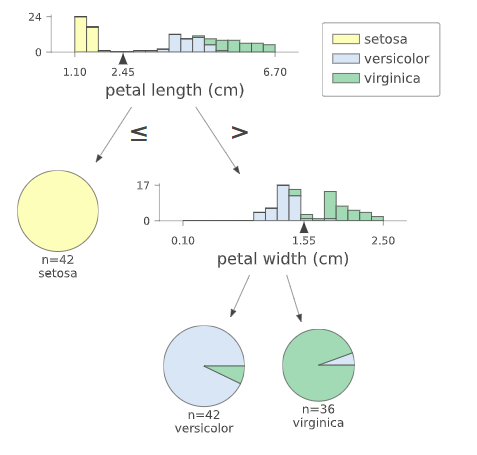

Decision Tree

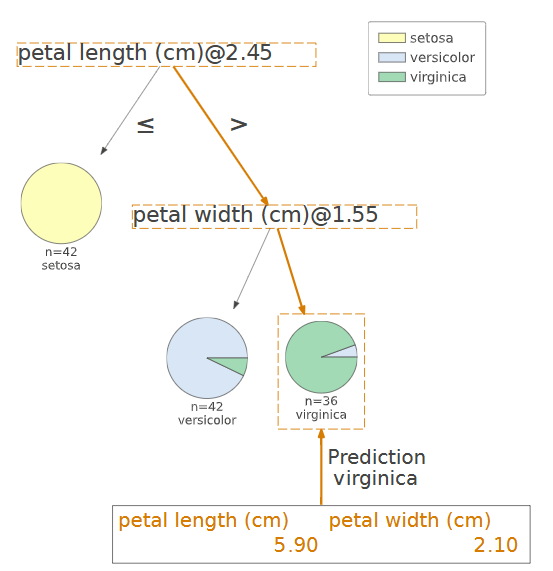

Prediction of an individual Instance

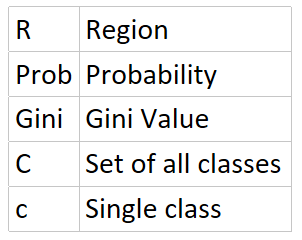

Gini Value of Region

Mathematical Definition

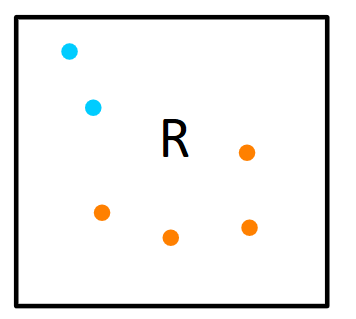

Data

Calculation

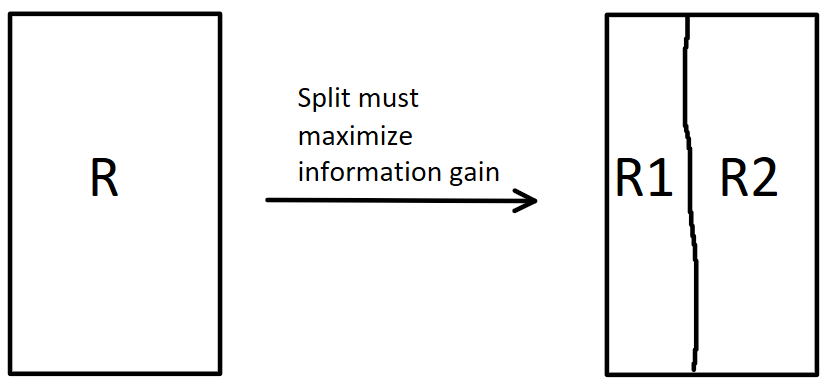

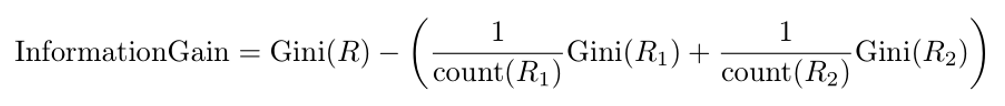

Split Criterion Classification
