Graph Data Science

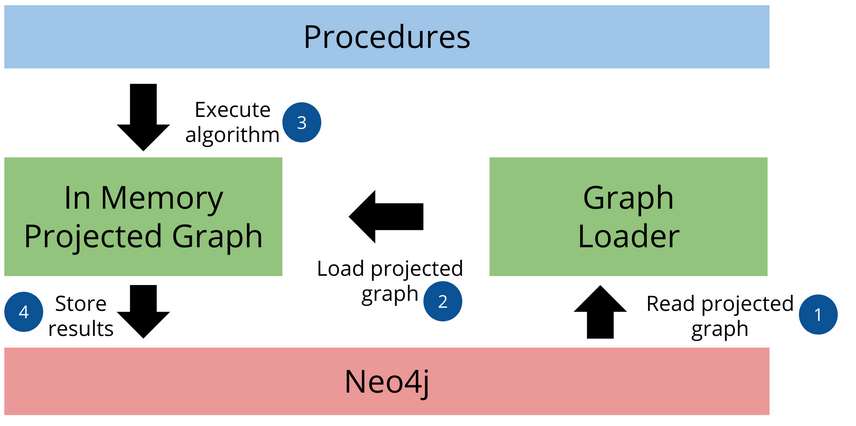

Graph Data Science: Pipeline

Neo4j Graph Data Science

Algorithmen-Ausprägungen

• stream – Liefert ein Ergebnis wie eine normale Cypher Query
• mutate – Schreibt Ergebnisse in den In-Memory Graph
• write – Schreibt Ergebnisse in die Neo4j-Datenbank

(Neo4j-Dokumentation)

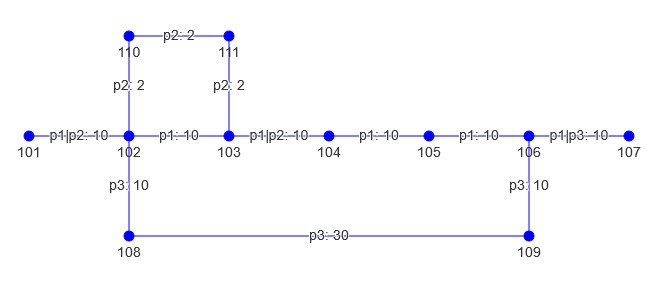

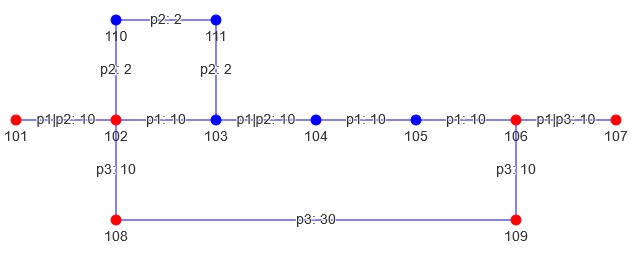

Shortest Path – Graph

(Dijkstra Source-Target)

Shortest Path – Hops

MATCH (n1:Node {l: '101'}), (n2:Node {l: '107'})
CALL gds.shortestPath.dijkstra.stream('g', {
   sourceNode: n1,
   targetNode: n2
})
YIELD index, sourceNode, targetNode,
      totalCost, nodeIds, costs, path
WITH [nodeId IN nodeIds |
      gds.util.asNode(nodeId).nid] AS p
UNWIND p AS nid
RETURN nid;

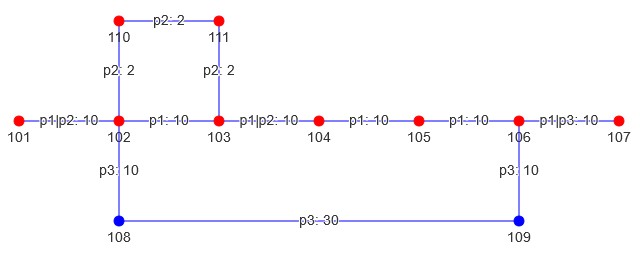

Shortest Path – Weight

MATCH (n1:Node {l: '101'}), (n2:Node {l: '107'})
CALL gds.shortestPath.dijkstra.stream('g', {
   sourceNode: n1,
   targetNode: n2,
   relationshipWeightProperty: 'w'
})
YIELD index, sourceNode, targetNode,
      totalCost, nodeIds, costs, path
WITH [nodeId IN nodeIds |
      gds.util.asNode(nodeId).nid] AS p
UNWIND p AS nid
RETURN nid;

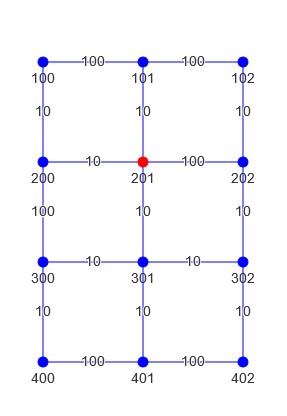

Minimum Weight Spanning Tree – Graph

(Dokumentation)

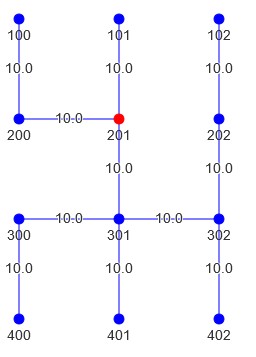

Minimum Weight Spanning Tree – Solution

• Ursprungsgraph hat Kantentyp Edge
• Neue Kanten zum Kantentyp Edge1 werden angelegt (schreibt in den Graphen)

MATCH (n:Node {nid: 201})
CALL gds.alpha.spanningTree.minimum.write('g', {
   startNodeId: id(n),
   relationshipWeightProperty: 'w',
   writeProperty: 'Edge1',
   weightWriteProperty: 'w'
})
YIELD effectiveNodeCount
RETURN effectiveNodeCount;

Graph mit Edge1 wird ausgelesen und angezeigt.

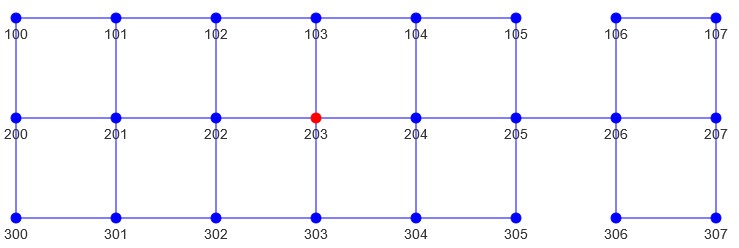

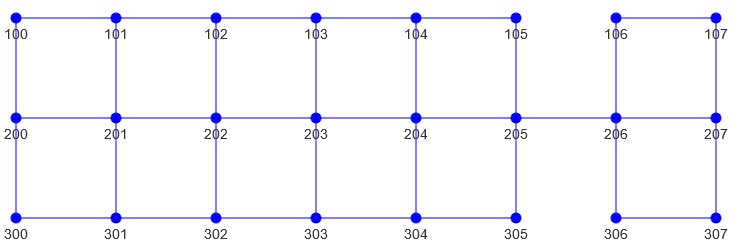

Centrality – Graph

Closeness Centrality (Doku)

• u – Knoten
• n – Anzahl Knoten
• d(u,v) – Distanz des kürzesten Pfades zwischen u und v

Betweenness Centrality (Doku)

• u – Knoten
• p – Anzahl der kürzesten Pfade zwischen s und t
• p(u) – Anzahl der kürzesten Pfade zwischen s und t, die u enthalten

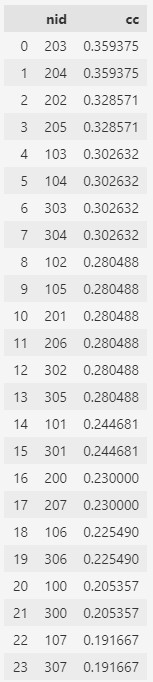

Closeness Centrality – Solution

CALL gds.alpha.closeness.stream('g')
YIELD nodeId, centrality
RETURN gds.util.asNode(nodeId).nid AS nid,
       centrality AS cc
ORDER BY cc DESC;

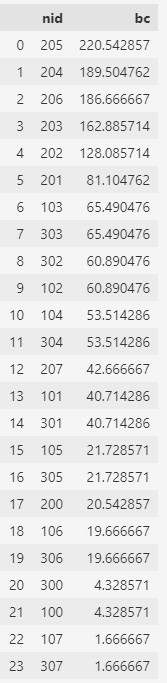

Betweenness Centrality – Solution

CALL gds.betweenness.stream('g')
YIELD nodeId, score
RETURN gds.util.asNode(nodeId).nid AS nid,
       score AS bc
ORDER BY score DESC;

Pagerank – Graph 1

(Dokumentation)

Pagerank – Solution 1

CALL gds.pageRank.stream('g')
YIELD nodeId, score
RETURN gds.util.asNode(nodeId).nid AS nid,
       score
ORDER BY score DESC;

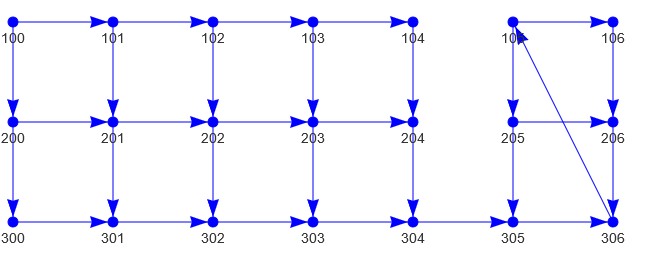

Pagerank – Graph 2

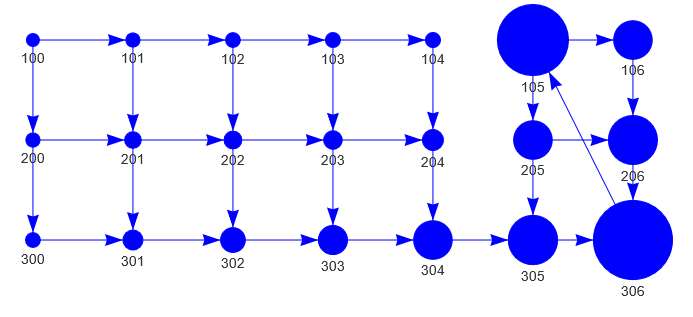

Pagerank – Solution 2

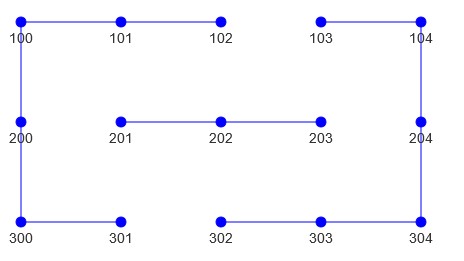

Strongly Connected Components – Graph

(Dokumentation)

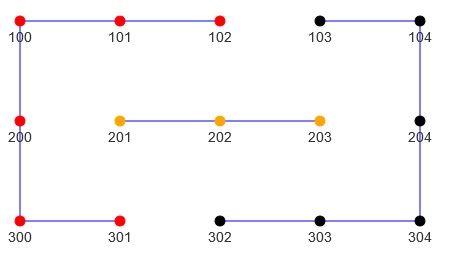

Strongly Connected Components – Solution

CALL gds.alpha.scc.stream('g')
YIELD nodeId, componentId
RETURN gds.util.asNode(nodeId).nid AS nid,
       componentId AS cid
ORDER BY cid;
