ER-Modell HVS

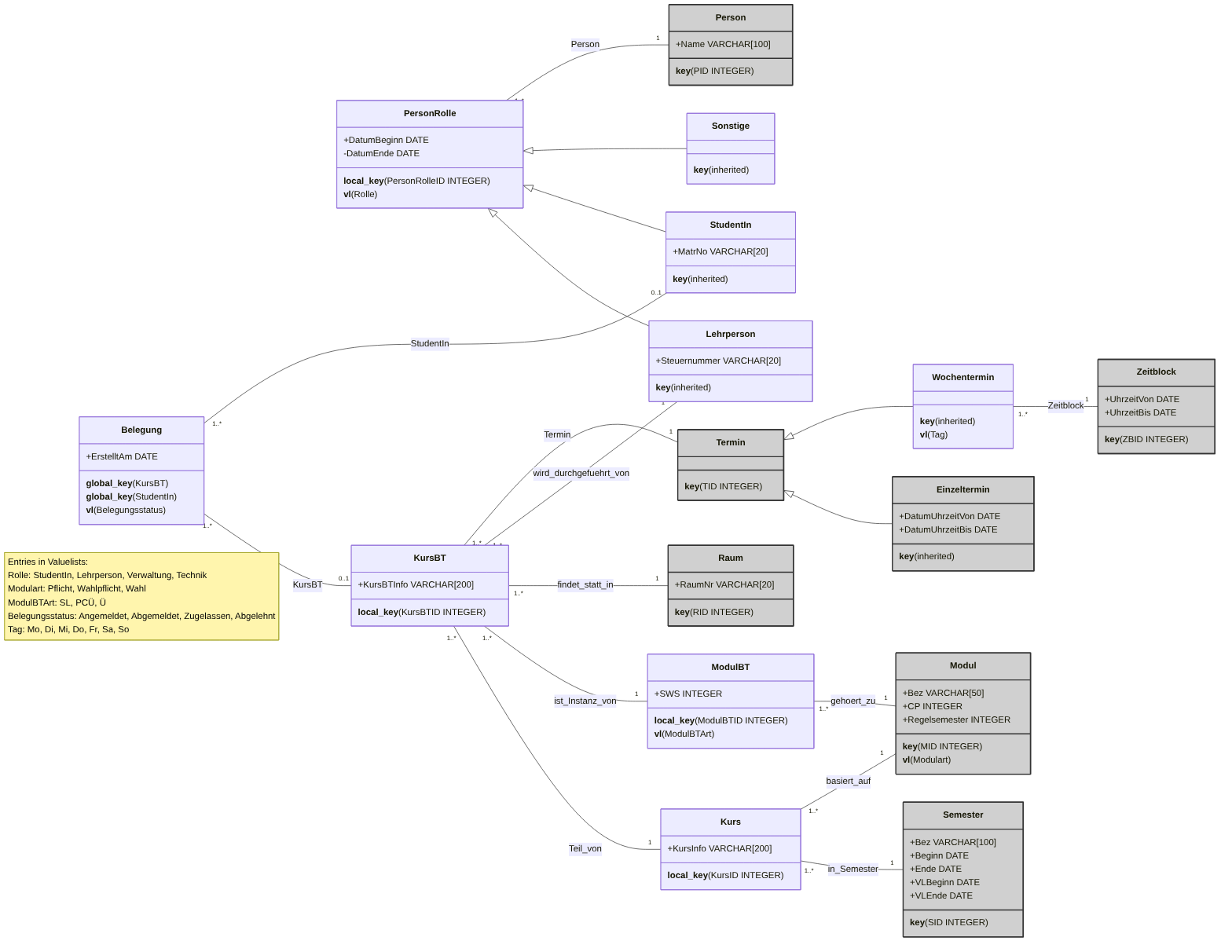

Diagramm

YAML

entities:
- entityname: Person
  key: PID
  attributes:
  - attributename: Name
    type: VARCHAR(100)

- entityname: Semester
  key: SID
  attributes:
  - attributename: Bez
    type: VARCHAR(100)
  - attributename: Beginn
    type: DATE
  - attributename: Ende
    type: DATE
  - attributename: VLBeginn
    type: DATE
  - attributename: VLEnde
    type: DATE

- entityname: Modul
  key: MID
  attributes:
  - attributename: Bez
    type: VARCHAR(50)
  - attributename: CP
    type: INTEGER
  - attributename: Regelsemester
    type: INTEGER

- entityname: Raum
  key: RID
  attributes:
  - attributename: RaumNr
    type: VARCHAR(20)

- entityname: Termin
  key: TID

- entityname: Einzeltermin
  attributes:
  - attributename: DatumUhrzeitVon
    type: DATE
  - attributename: DatumUhrzeitBis
    type: DATE

- entityname: Zeitblock
  key: ZBID
  attributes:
  - attributename: UhrzeitVon
    type: DATE
  - attributename: UhrzeitBis
    type: DATE


associative_entities:
- associationname: Wochentermin
  associations:
  - targetentity: Zeitblock
    cardinality: ONE


- associationname: PersonRolle
  identification:
    localkey: PersonRolleID
  associations:
  - targetentity: Person
    cardinality: ONE
  attributes:
  - attributename: DatumBeginn
    type: DATE
  - attributename: DatumEnde
    type: DATE
    nullable: TRUE

- associationname: Lehrperson
  attributes:
  - attributename: Steuernummer
    type: VARCHAR(20)

- associationname: StudentIn
  attributes:
  - attributename: MatrNo
    type: VARCHAR(20)

- associationname: Sonstige

- associationname: ModulBT
  identification:
    localkey: ModulBTID
  associations:
  - targetentity: Modul
    cardinality: ONE
    role: gehoert_zu
  attributes:
  - attributename: SWS
    type: INTEGER

- associationname: Kurs
  identification:
    localkey: KursID
  associations:
  - targetentity: Semester
    cardinality: ONE
    role: in_Semester
  - targetentity: Modul
    cardinality: ONE
    role: basiert_auf
  attributes:
  - attributename: KursInfo
    type: VARCHAR(200)

- associationname: KursBT
  identification:
    localkey: KursBTID
  associations:
  - targetentity: Kurs
    cardinality: ONE
    role: Teil_von
  - targetentity: ModulBT
    cardinality: ONE
    role: ist_Instanz_von
  - targetentity: Raum
    cardinality: ONE
    role: findet_statt_in
  - targetentity: Lehrperson
    cardinality: ONE
    role: wird_durchgefuehrt_von
  - targetentity: Termin
    cardinality: ONE
  attributes:
  - attributename: KursBTInfo
    type: VARCHAR(200)

- associationname: Belegung
  identification:
    global:
      - targetentity: KursBT
      - targetentity: StudentIn
  attributes:
  - attributename: ErstelltAm
    type: DATE

inheritances:
- superentity: PersonRolle
  subentities:
  - Lehrperson
  - StudentIn
  - Sonstige

- superentity: Termin
  subentities:
  - Einzeltermin
  - Wochentermin

valuelists:
- valuelistname: Rolle
  values:
  - StudentIn
  - Lehrperson
  - Verwaltung
  - Technik
  many_to_one_from_entities:
  - sourceentity: PersonRolle

- valuelistname: Modulart
  values:
  - Pflicht
  - Wahlpflicht
  - Wahl
  many_to_one_from_entities:
  - sourceentity: Modul

- valuelistname: ModulBTArt
  values:
  - SL
  - PCÜ
  - Ü
  many_to_one_from_entities:
  - sourceentity: ModulBT

- valuelistname: Belegungsstatus
  values:
  - Angemeldet
  - Abgemeldet
  - Zugelassen
  - Abgelehnt
  many_to_one_from_entities:
  - sourceentity: Belegung

- valuelistname: Tag
  values:
  - Mo
  - Di
  - Mi
  - Do
  - Fr
  - Sa
  - So
  many_to_one_from_entities:
  - sourceentity: Wochentermin
"""
